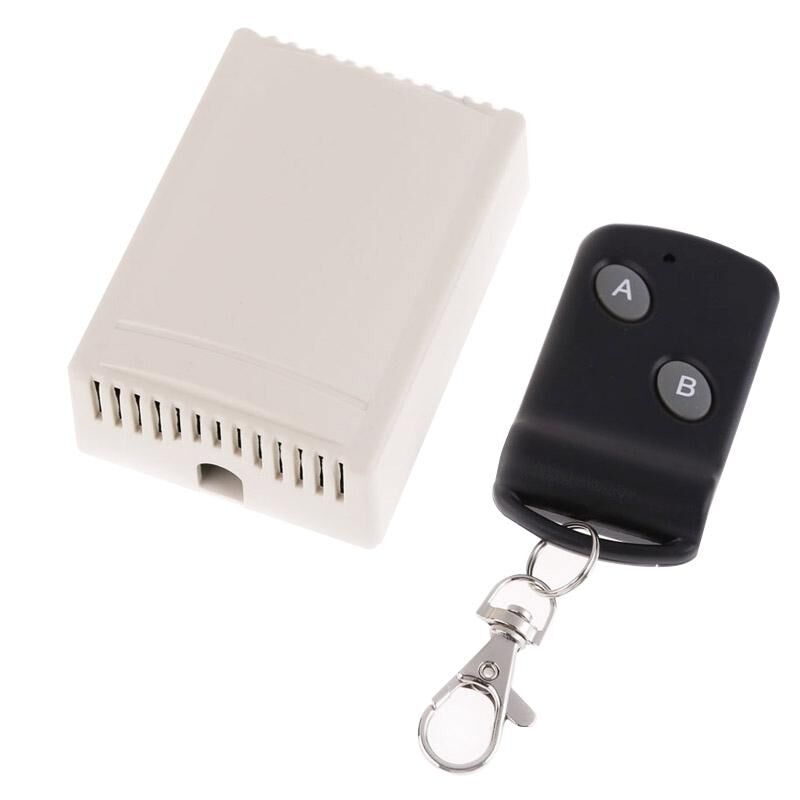

12V 2CH 200m RF Wireless Remote Control System Control + Switch Transmitter

Κατόπιν παραγγελίας (7-15 εργάσιμες ημέρες)
14.51
(με ΦΠΑ)
SK390765
+
Οι εκπτώσεις της ποσότητα μας:
Ποσότητα 5+ 10+ 30+ 50+ 100+
Τιμή 12.48 11.90 11.32 10.16 8.85
Προσθήκη στη Λίστα Αγαπημένων

Περιγραφή

About the product
1. 100% Brand new and high quality
2. Lightweight and portable
3. Easy to install and use

Specifications
1. 12V 2CH 10A RF wireless remote control system.
2. It is a learning code wireless remote control switch (receiver), the output way / working way can be changed as you like, it is easy to match the transmitter.
3. The AK-RK02S-12 2 channel wireless remote control switch with 4 Relays.
4. It can make the equipment turn or reverse on / off and so on to come true.
5. The volume is small and the performance is stable and reliable, high receive sensitivity.

Output working way
1. Self-lock ---connect the JP1 with the cutting out cap.
2. Jog---the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
3. Inter-lock---- Connect the Jp2 with the Cutting out cap.
Jog----Press one button is ON. Loosen your finger on the same button is OFF. (Need one channel switch and one button remote control)
Self-lock-----Press one button for one time is ON. Press the same button again is OFF.
(Need one channel switch and one button remote control)
Inter-lock-----Press one button is ON, press another button is OFF. (Need one channel switch and 2 buttons remote control).

Please notice that
Here is the 2CH receiver and 2 buttons transmitter, you just choose the output way is Self-lock or Jog or Inter-lock.

Learning and remove method
1. Press the learning code. The indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off. It means you learn it successfully.
2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control.
3. Remove / clean: Press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.

Application range
1. Auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security
2. The switch can compatible 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone need of choosing the wireless remote control as they like to work with it.
