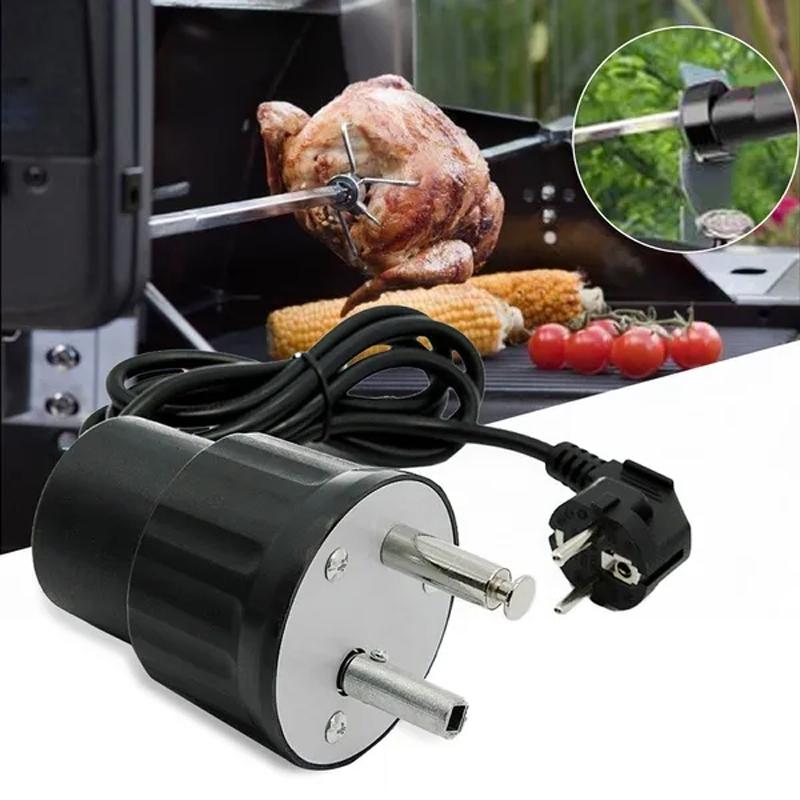

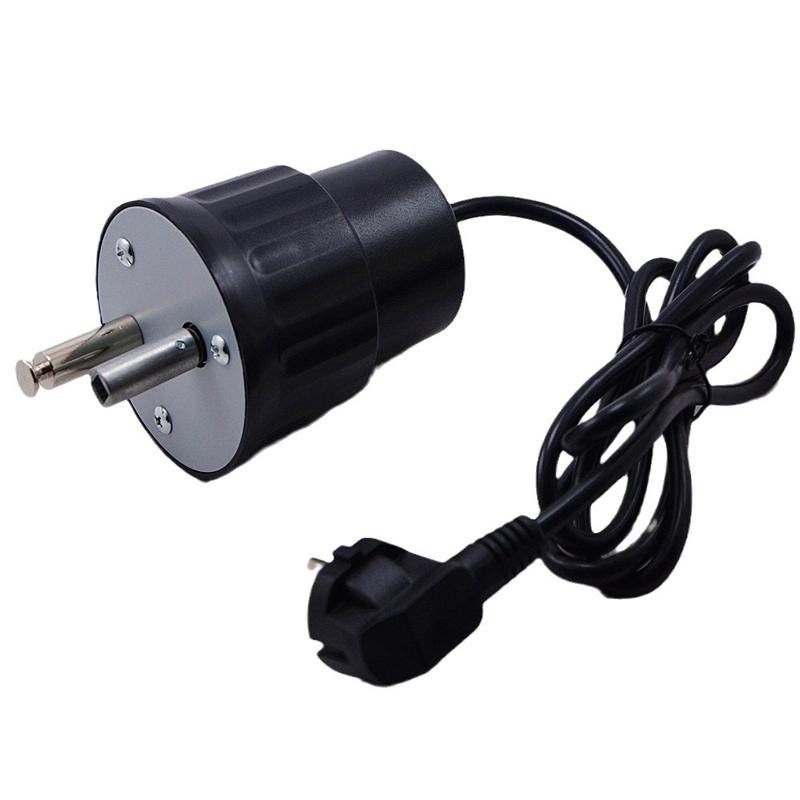

220-240V AC Barbecue Motor Outdoor Picnic Grill Rotary Motor, Specification: EU Plug

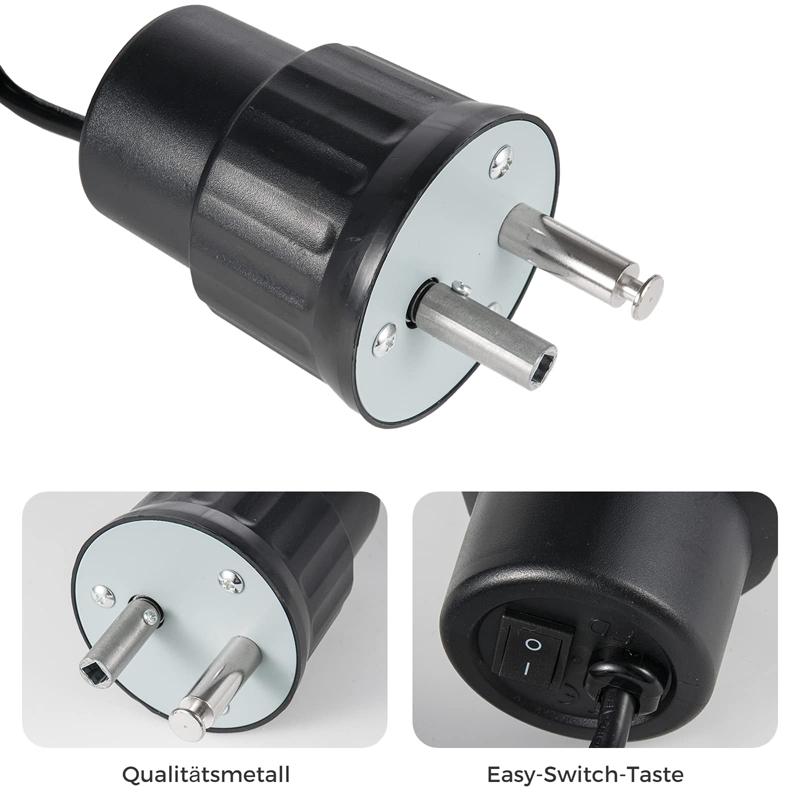

1. All-metal drive, low noise, good warmth, long service life
2. Compact size, easy to carry, suitable for picnic, barbecue, etc
3. Plug and play, low power consumption, more energy-saving
4. BBQ motor is durable, not easy to corrode and damage

Parameters:
1. Rated voltage: 230V
2. Rated current: below 22mA
3. Rated power: 4W or less
4. Voltage frequency: 50-60Hz
5. Motor speed: 2rpm
6. Cable length: 1.5 meters
7. Starting voltage: 0.85 times the rated voltage can be started
8. Number of stages: 12
9. Insulation class: class A
10. Insulation resistance: more than 100 ohms
11. Insulation withstand voltage: motor with AC1800V/S, leakage current 2mA test, no leakage conditions
12. Use of the environment: in -5-40 celsius degree, altitude of 1000 meters below, the motor can run normally
13. Direction of rotation: CW/CCW
14. Outlet braking torque: 0-13kg.cm
15. Output shaft clearance: less than 0.03m/m
16. Motor life: more than 1800 hours of continuous operation with a load of 3Kg.cm
17. Baking branch aperture diameter: 6.5 x 6.5mm

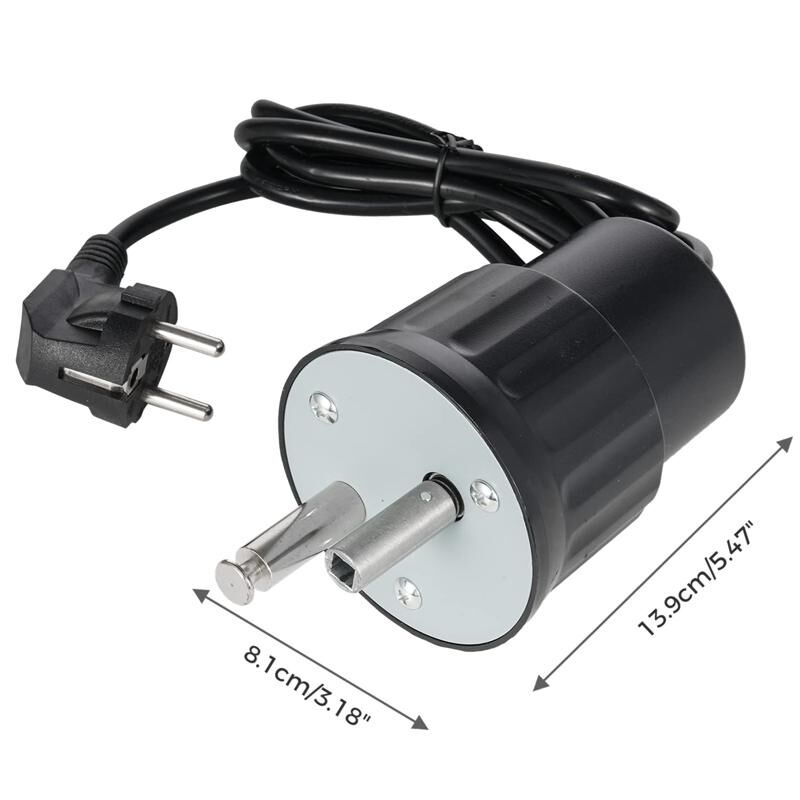

18. Size: 8.1 x 8.1 x 13.9cm
