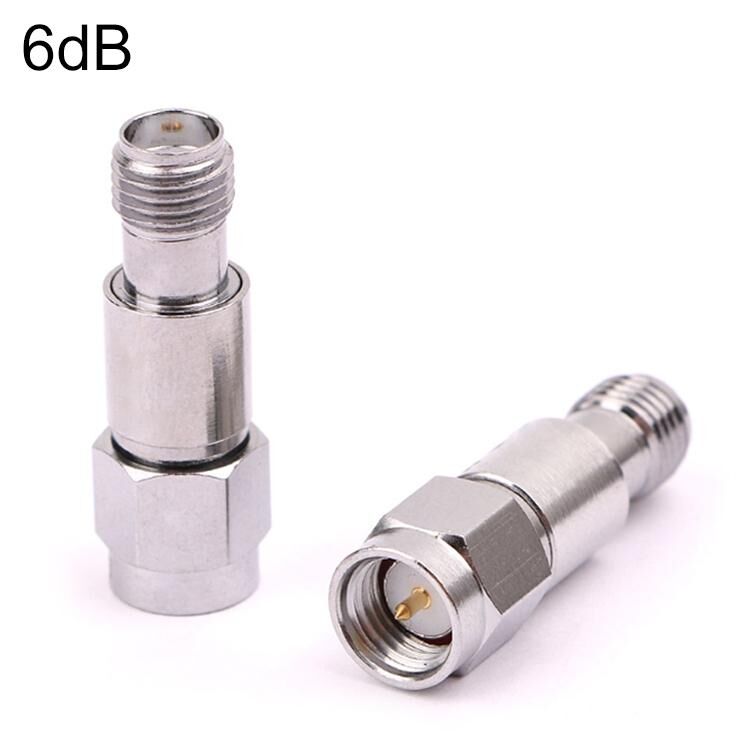

6dBi SMA Attenuator DC-6GHz SMA Coaxial Fixed Connectors

Κατόπιν παραγγελίας (7-15 εργάσιμες ημέρες)
14.15
(με ΦΠΑ)
SK2484434
+
Ποσοτικές εκπτώσεις:
Ποσότητα 5+ 10+ 30+ 50+ 100+
Τιμή 10.75 10.25 9.75 9.00 8.75
  • Διαθεσιμότητα Προϊόντος
  • Ερώτηση για το προϊόν
  • Δωρεάν Αποστολή άνω των 80€

Περιγραφή

Features:
1. Useful in a wide variety of applications including impedance matching and level control.
2. With diffrent attenuation values of fixed attenuator to be chosen from. Good quality, rugged construction.
3. Suitable for microwave equipment, electronic equipment or communication systems. The use of features frequency bandwidth, low standing wave, power, stable performance.
4. It can promote your work efficiently.

Specification:
1. Materila: stainless steel
2. Power: 2W
3. Frequency Range: DC-6GHz
4. Impedance: 50 ohm
5. tanding-wave ratio (SWR): <=1.20
6. Connector Type: SMA-J ~ SMA-K
7. perating Temperature: -20~115 degrees Celsius

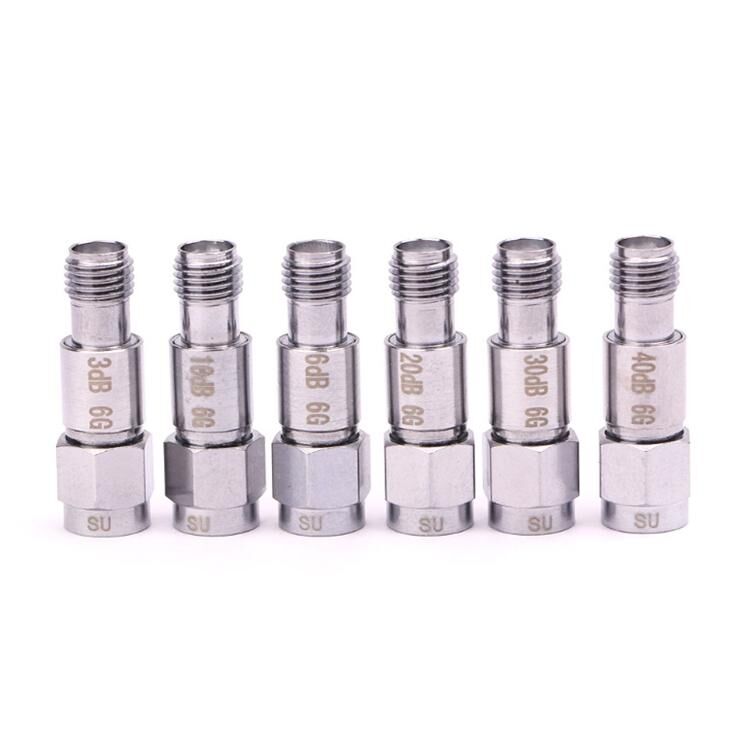

8. Attenuation: 60dB/50dB/40dB/30dB/25dB/20dB/10dB/6dB/5dB/3dB/2dB/1dB
9. Attenuation Range: +/-0.5dB; 30+/-0.8dB; 40-50dB+/-1.5dB; 60dB+/-1.8dB

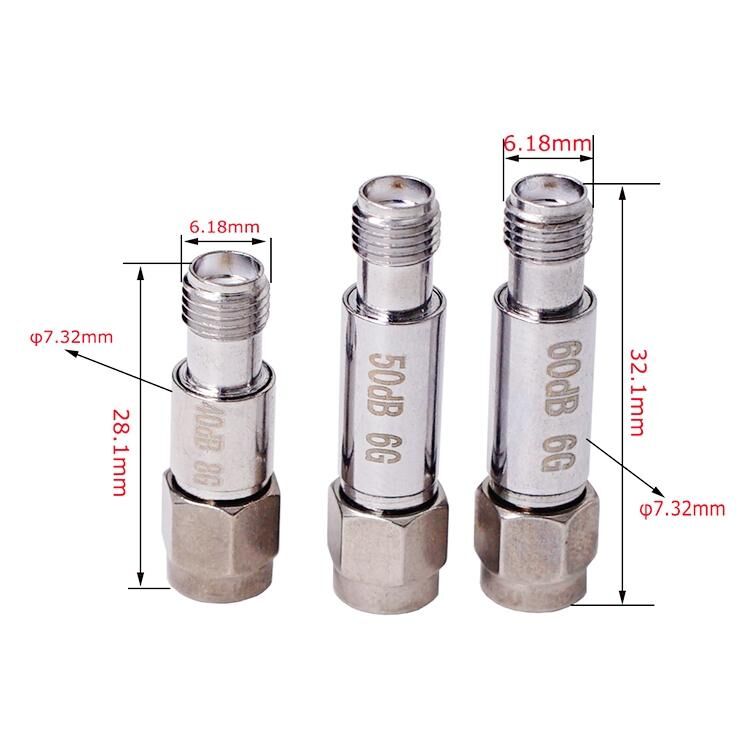

10. Size: 1dB~40dB app.28.1x9.1mm 50dB/60dB app.32.1x9.1mm
