100 τεμάχια αυτοασφαλιζόμενο μπλοκ γρήγορου τερματικού μπλοκ οροφής τύπου Push, Προδιαγραφές: CH-2

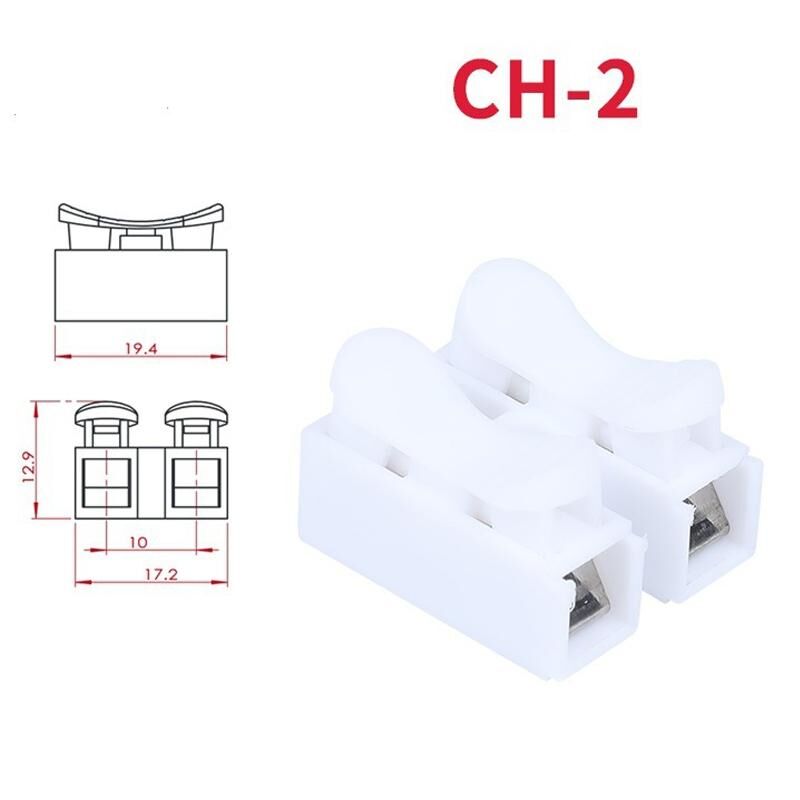

CH-2:
1. Applicable wire: 0.5-2.5mm^2
2. Rated voltage: 250V
3. Rated current: 10A
4. Withstanding voltage: 4KV
5. Dimensions: 17.5x20x13.5 mm
6. Shell material: PA66
7. Material of crimping frame: 304 stainless steel

CH-3:
1. Applicable wire: 0.5-2.5mm^2
2. Rated voltage: 250V
3. Rated current: 24A
4. Withstanding voltage: 4KV
5. Dimensions: 20x26x13 mm
6. Shell material: PA66
7. Material of crimping frame: 304 stainless steel

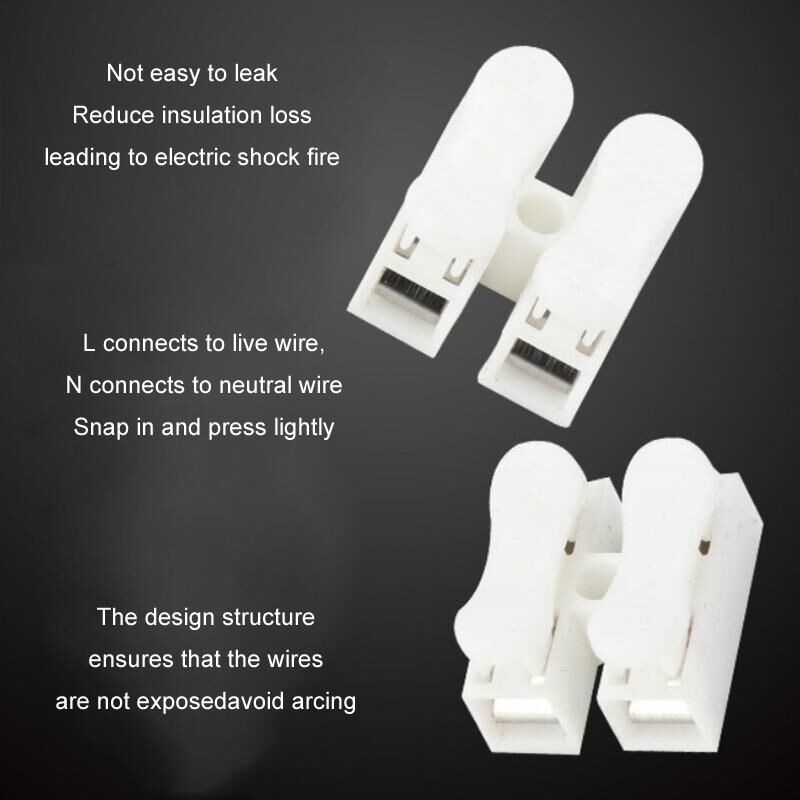

1. It is not easy to leak electricity and reduce the loss of insulation to cause electric shock and fire
2. L is connected to live wire, N is connected to neutral wire, click in and press lightly
3. The design structure ensures that the wires are not exposed to avoid arcing
4. Fast installation in 5 seconds, high security
5. High-quality insulating PA material, temperature resistance 105 degrees

Installation method:
1. Strip off the wire sheath 8-10mm
2. Press down on one end of the terminal
3. Insert the stripped wire end into the gap
4. Wire insertion is complete and loosened between
