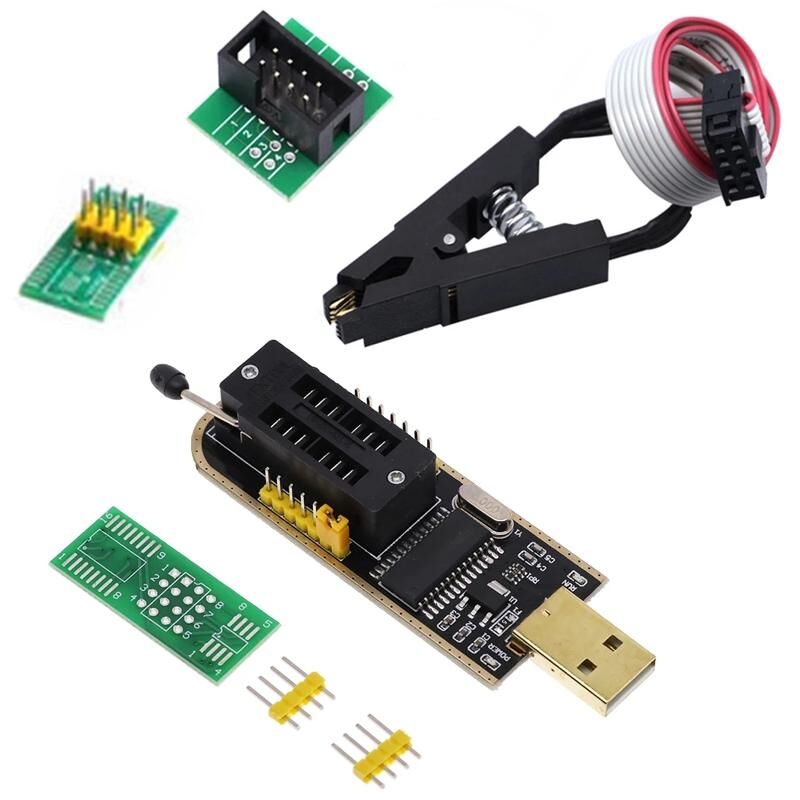

Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool

Κατόπιν παραγγελίας (7-15 εργάσιμες ημέρες)
12.00
(με ΦΠΑ)
SK3092110
+
Ποσοτικές εκπτώσεις:
Ποσότητα 5+ 10+ 30+ 50+ 100+
Τιμή 10.17 9.69 9.22 8.51 8.27
  • Διαθεσιμότητα Προϊόντος
  • Ερώτηση για το προϊόν
  • Δωρεάν Αποστολή άνω των 80€

Περιγραφή


Product features:
1. Adopts FT232BL chip with external EEPRON (93C46)
2. Support Windows 10
3. Support 3 power supply modes: 5V external power supply, 3.3V external power supply, external power supply (requires 3.3V-5V)
4. With 3 LEDs: TXD LED, RXD LED, POWER LED
5. GND, RXD, TXD, 3V3, 5V: using a curved pin pin out
6. The rest of the function PIN: reserved pads CTS, RTS

Instructions for use: (to access the MCU as an example)
1. GND: connected to GND
2. RXD: connect to MCU.TX (Signal flow: MCU.TX - FT232 - PC.RX)
3. TXD: connect to MCU.RX (signal flow: PC.TX - FT232 - MCU.RX)
4. 3V3/5V: output 3.3V or 5V (the module is powered by USB, the jumper cap must be jumped to 3.3V or 5V)
5. RTS: connect to MCU.CTS (signal flow: PC.RTS - FT232 - MCU.CTS)
6. CTS: connect to MCU.RTS (Signal flow: MCU.RTS - FT232 - PC.CTS)
